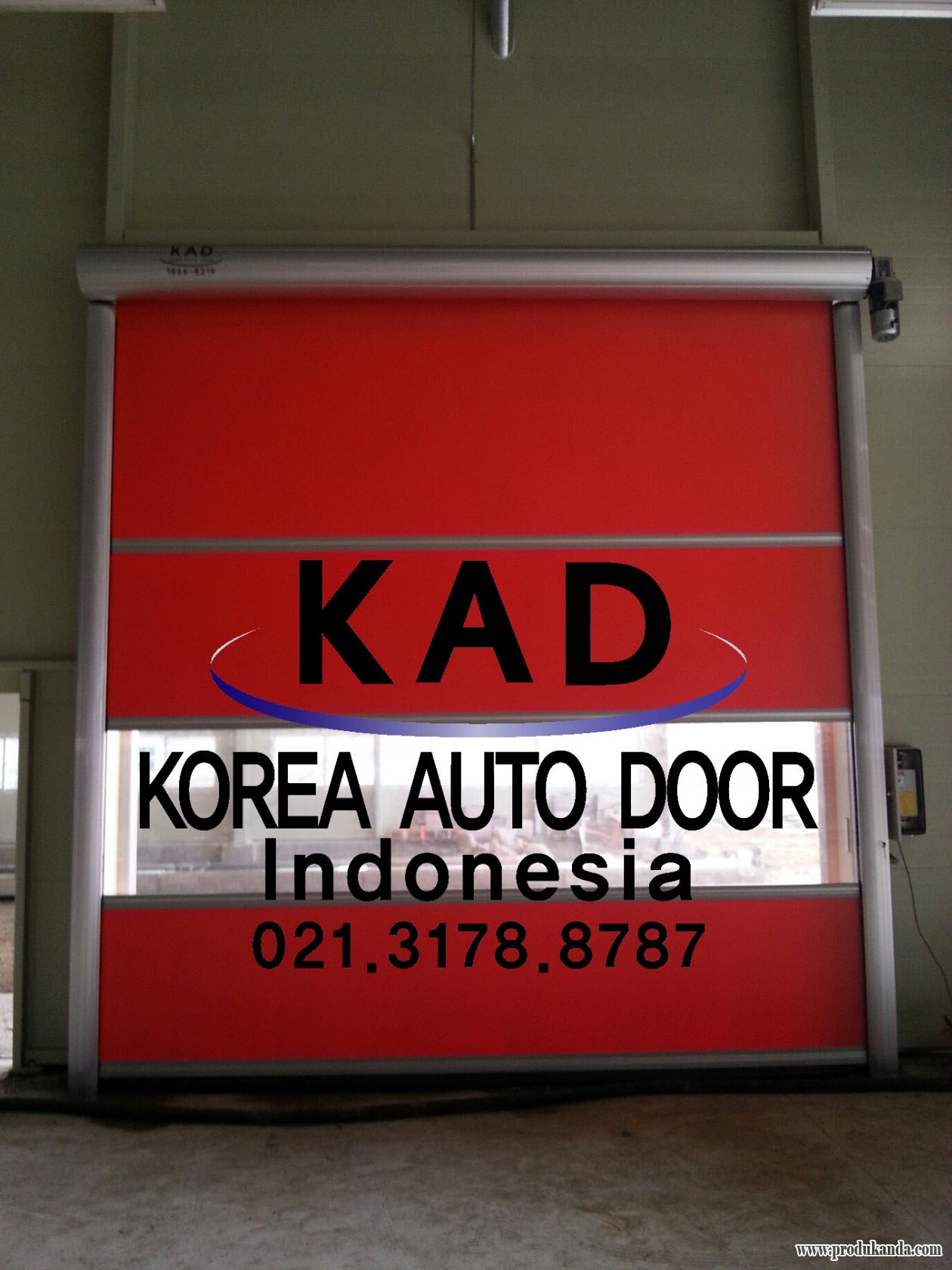

KAD-2000 High Speed Door is as a widely used one in the field, KAD-2000 High Speed Door is easy to install and operate. Rapid opening and closing helps you to save energy. KAD-2000 High Speed Door is good for those places where trucks, forklift, transportation carts are frequently coming in and out. And also KAD-2000 High Speed Door can be able to replace sectional sheet which can minimize the maintenance cost.
- - Reasonable price compared with its performance
- - Excellent resistance to corrosion and wear using aluminum frames
- - Easy to replace because each part is partially assembled and minimize maintenance cost
- - KAD-2000 High Speed Door is good for food companies and refrigerated storages which are easily exposed to moistur
| Door size (Width x Height) | Min. 1m x 1m, Max. 6.5m x 7m | ||
| Open and Close speed | Max. 1.0m/sec ~ 3.0m/sec | ||
| Temp. range | -15℃ ~ +70℃ | ||
| Number of operating | over 2,000,000 ~5,000,000 times | ||
| Noise | 15~20dB | ||
| Motor power | 3phase-220V-0.4KW ~ 1.5KW-60Hz (Optional) | ||
| Control power | Single phase AC220V, DC24V, 60Hz | ||
SENSOR
Loop Sensor
Detect forklift/ pallet/ vehicle.
Infrared Sensor/ Ultrasonik Sensor
Detects moving objects included people. Can be adjust to be open only for people/ vehicle or open automatically for any objects that passed by.
Photo Sensor
Safety sensor. As long there is any object that stand in the middle of door, the door will not close.
Touch Switch
Manual button that use in "Hand Mode" status. Meaning, the door will be open or close if people press the button.
Sheet Material
PVC Material sheet to prevent insect from entering and dust.
Vission transparant sheet
Sheet can be combine with transparant sheet in the middle section to maximize the vissibility for inside/outside of the work areas.
High-strength double extruded aluminium material
Applied water resistant & corrosion-resistant aluminium coating to prevent the corrosion.
Round Frame Structure
Dust resistant round frame design to minimize the dust build up.
Brush guide rail
Sealed structure by adding brush to prevent the foreign objects such as dust & insect from entering.
Print out Logo
Able to put printed advertisement logo or material.
High speed door is made by size customization based on customer's need and wants.
Besides the features explained above, there are many other features that you can find through our website & Blog by clicking Korea Auto Door link that already provided on this page.
Call us now for price information, free consultation & free survey!
KOREA AUTO DOOR, MARKET LEADER IN HIGH SPEED DOOR!
Quality guarantee and customer satisfaction are our priority!
